Key Benefits

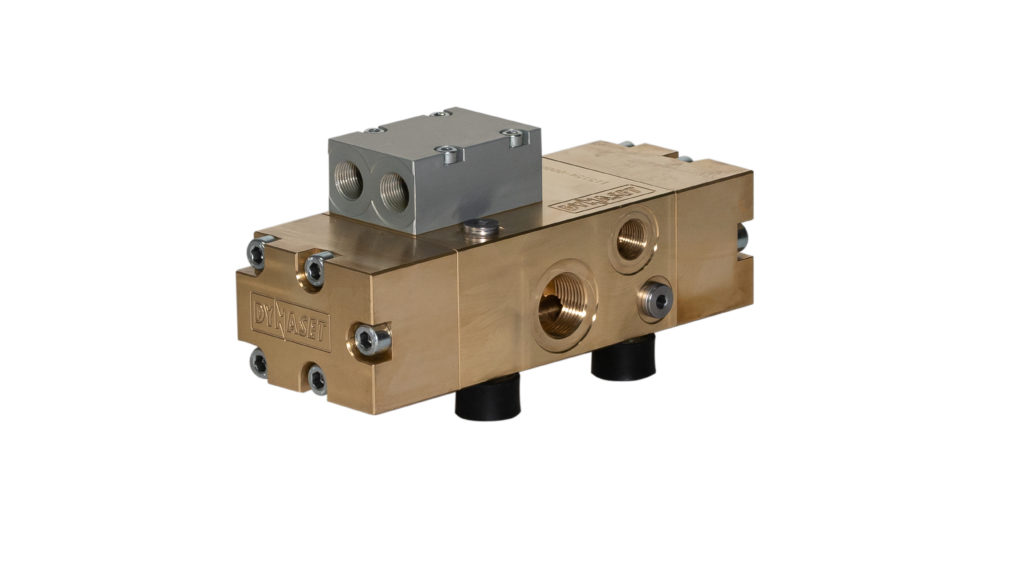

Produces high-pressure water for any application in mobile use.
- Always ready for use
- Low water consumption
- Low maintenance
- Saves time, space and resources
- Easy installation on all hydraulic systems
- Can be connected in series or in parallel to gain higher water flow
- Can be used with sea water, chemicals or other fluids depending on the model
- Produces water flow even at lower level hydraulic flow
- No rotating parts
- No separate engines
- Reliable
- Durable
- Safe to run dry
- Small carbon footprint
- Two-year or 2000 hour warranty

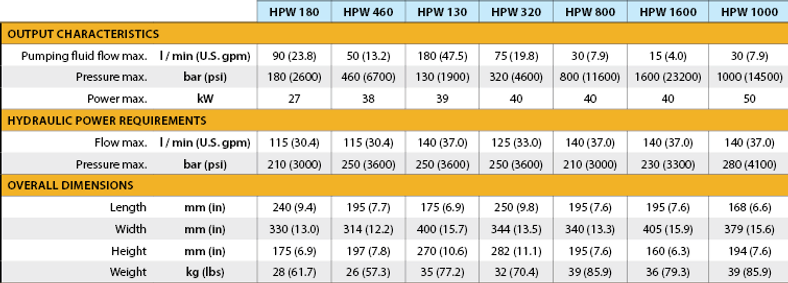

In addition to the output power range of 10kW-200kW, the hydraulic high pressure water pump has plenty of models with useful features.
- Compact size
- Light-weight
- Self-priming (up to 800 bar models)
- Linear output adjustability from 0% to 100% by controlling hydraulic flow
- The world’s best power-to-size ratio
- The world’s best power-to-weight ratio
- Max from 90 bar to 1600 bar depending on the model
- Max flow from 15 l/min to 300 l/min depending on the model
- ATEX certified models available
- Models with variety of materials for different uses available
PT Blocks
Pressure reducer and flow limiters
LS-water pressure control
Free flow
Washing gun with single or duplex spraying pipe 50 l/min to 120 l/min (125 – 3000 bar)
Washing gun with electric control for 15 l/min to 50 l/min (250 – 2000 bar)
Pressure hoses
Suction hose + filters with claw coupling
Suction filters
Carrying frame HPW 200/30-45, with handle
Spraying nozzles MEG – 1/4 point (0 deg) / fan, 15 … 65 deg std. 25 deg
Water cutting nozzle, sharp point spray (incl. body)
Rotating turbo nozzles 200 – 1500 bar
Hydraulic rotating nozzle 360deg 5-90lpm 100-1600bar, for paint removal and hydro demolition
Hydraulic brush / sector nozzle 90deg 5-90lpm 220 bar
Hydraulic 3D bin washing nozzle, tank etc.
Sand blasting equipment 20 l/min 200 bar
Sand blasting equipment 50 l/min 500 bar, point or fan spray
Hose reel 20m, spring reel-in, with automatic latch, without hose (max550bar)
Hose reel 20m AIS, spring reel-in, with autom. latch, without hose(max200bar)
Water heating unit 200bar, 110kW, diesel (25lpm delta t=58C)
Water heating unit 500bar, 110kW, diesel (25lpm delta t=58C)
Washing injector R 3/8, adjustable mixing ratio
Mud pump / filling pumps
Flow multipliers
Pipe cleaning equipment – check PPL and accessories
Street washing equipment – check KPL and accessories
Firefighting equipment – check HPW FIRE and accessories
Hydraulic hose reels
